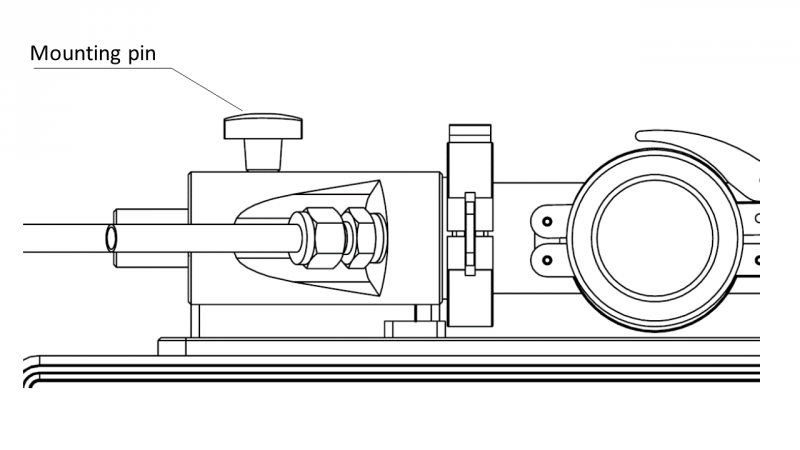

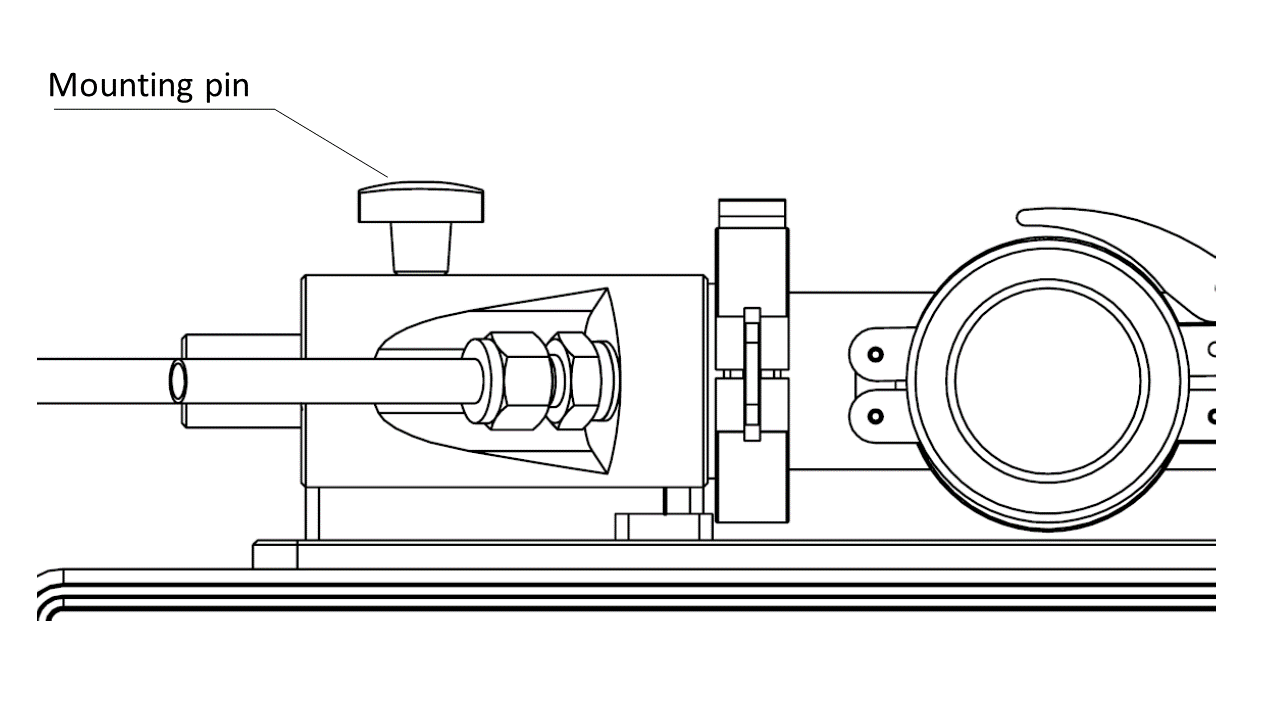

The mounting pins (2x) are used to secure the reactor assembly to the base unit. If the mounting pins are not correctly mounted, the system will enter interlock mode (Interlock error 9).
